PB Safety Joint

Show video

Application

PB safety joint provides easy release from stuck tool or tube during remediation operations.

Design

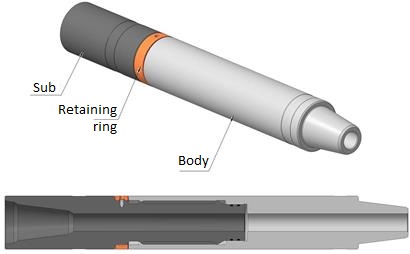

The safety joint is a short tube made of alloy steel and consists of two parts - sub and body, connected by durable trapezoidal thread with retaining ring in between, that prevents thread connection from overtorque.
The connection is sealed off by two sealing rings.
The safety joint has a watercourse for mud circulation.
It is available in right- and left-hand configurations.

Images and Dimensions

Technical data

To cart	Code	OD, in	Total length, ft	Watercourse D, in	Compatible API connection	Weight, lb
	PB-66	3-3/16	2.01	1,0	2-3/8 Reg	52.91
	PB-73	3-3/8	2.37	1-1/4	NC 26	55.12
	PB-76	3-3/4	2.37	1-1/4	2-7/8 Reg	83.78
	PB-86	4-1/4	2.37	2-1/8	NC 31	77.16
	PB-88	4-1/4	2.37	1-1/2	3-1/2 Reg	194.4
	PB-102	4-3/4	2.37	2-3/4	NC 38	88.18
	PB-122	5-3/4	2.63	3-1/4	4 IF	141.1
	PB-133	6-1/8	2.63	3-3/4	4-1/2 IF	145.5
	PB-147	7,0	2.71	4,0	5-1/2 FH	209.4

You can specify the size of an item on the checkout page.
