DGT-2 Hydraulic Tubing Puncher

Full specifications

Show video

Application

DGT-2 hydraulic tubing puncher perforates and punches tubing for achieving well communication between tubing and annulus during intervention in a well. The puncher is run in hole on pipes, wireline or by dropping.

Design

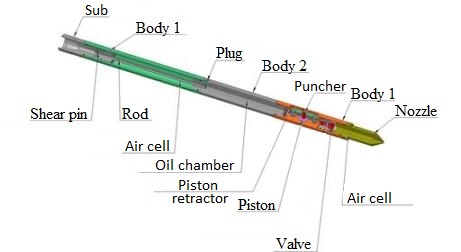

DGT-2 puncher consists of body 1, body 2, body 3, piston, puncher, piston retractor, rod, float valve, cup, sub, set of shear pins, injection plug and O-rings.

Images and Dimensions

Technical data

To cart	Code	Body OD, in	OD of box, in	Shear pin OD, in	Diameter of punched pipes, in	Total length, ft	Pressure differential necessary to shear shearing pin, psi (D 0.22/0.25/0.27 in)	Diameter of nozzle, in	Connecting thread	Weight, lb
	DGT-2-73	2.2	2.24	0.22/0.25	2.87	3.74	3770/4205/-	1.85	NKT-48	24.26

You can specify the size of an item on the checkout page.
