KSU spiral wireline spear retrieves well-logging wireline, electric cable, wire-rope, slickline during remediation in a cased hole.

Design

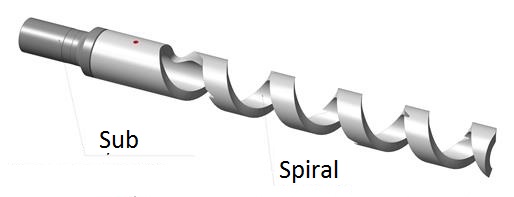

The spear is a single-piece helical grapple in the form of a corkscrew. The corkscrew is integral with the sub, having thread for connecting to the pipe string at the top. The corkscrew is made of heat-treated alloy steel. Each turn of the spiral has a catch, that precludes slip-off of the wireline during retrieval.

BITTEKHNIKA, whose policy is one of continuous improvement, reserves the right to discontinue or change designs and specifications without notice or written incurring obligations. Therefore, the below figures are meant to serve as a guide only. Additional sizes are available. For a complete listing, contact us: sales@bittekhnika.ru
Images and Dimensions
Technical data
To cart Code OD, in ID, in Total length,
ft
Length of the spiral,
ft
Top connection,
compatible with API
Max load
capacity, lbf
Weight, lb
KSU-122 4.80 2.95 4.29 3.06 NC 31 44 960 95.68
KSU-140 5.51 3.15 4.43 3.06 NC 31 44 960 130.07
KSU-206 8.11 5.63 6.04 4.29 NC 50 44 960 363.7
