Application

PRK washover shoe ruptures wireline in production casing and annulus during remediation.

Design

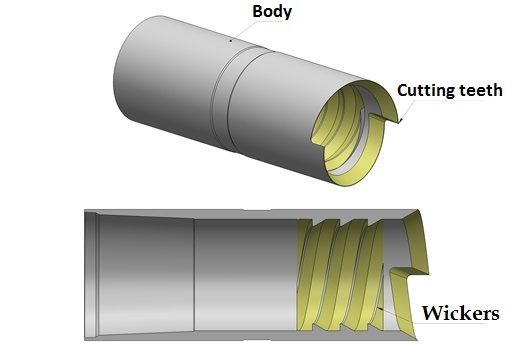

The washover shoe is a short alloy steel tube with toothed cutter at its bottom end. The teeth are carburized. The shoe is made of high tensile carburizable steel.
The internal unit has form of an auger (wickers) that packs wireline in, while milling. Depending on cable size, auger is available with short and long pitch.
Based on number of tooth at the bottom, there are three modifications of the washover shoe:
  • PRK2 modification — has 2 (two) coarse cutters at the bottom end.
  • PRK4 modification — has 4 (four) coarse cutters at the bottom end.
  • PRK3 modification — has multiple fine cutters at the bottom end.

Recommendation: please, use ShMU junk sub above PRK2 `& 3.

Customizable top connection: welded or threaded joint.

BITTEKHNIKA, whose policy is one of continuous improvement, reserves the right to discontinue or change designs and specifications without notice or written incurring obligations. Therefore, the below figures are meant to serve as a guide only. Additional sizes are available. For a complete listing, contact us: sales@bittekhnika.ru
Images and Dimensions
Technical data
To cart Code OD, in ID, in Wicker
direction
PRK2-114x96 4.49 3.78 right
PRK2-120x100 4.72 3.94 right
PRK2-136x117 5.35 4.61 right
PRK4-114x96 4.49 3.78 right
PRK4-120x100 4.72 3.94 right
PRK4-136x117 5.35 4.61 right
PRKz-114x96 4.49 3.78 right
PRKz-120x100 4.72 3.94 right
PRKz-136x117 5.35 4.61 right
You can specify the size of an item on the checkout page.
